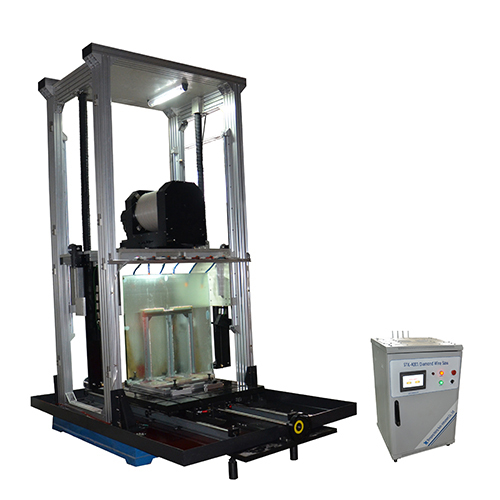

最大切断用ダイヤモンドワイヤーソー1m

Product Model

STX-4001

Major Parameters

(Specification)

1. speed of the cutting wire: adjustable within the range of 0 ~ 5m/s

2. Total length of cutting wire: ≤400m

3. Diameter of cutting wire: ≤0.65mm

4. Z-axis travel distance: ≤1m

5. Cutting speed: 0.05～100mm/min

6. Y-axis travel distance: ≤1m

7. Y-axis feed mode: manual

8. Tensioning mode: pneumatic tensioning

9. Workbench size: 1.2(L)×1m(W)

10. Diameter and length of workpiece: Φ1×1m (max)

11. Power supply: 220V/50Hz

12. The safety control device automatically stops when the wire is disconnected, with cutting angle protection

13. Main motor type: servo motor

14. Control mode: PLC, touch screen

15. Display mode: digital display

16. Machine tool dimension (length×width×height): 2850×1850×3350mm

17. Workbench load: 1.5t (max)

18. Net weight of machine: ≈ 2.5t

19. Power of the whole machine: ≈ 6kW

Dimension and Weight

Outline dimension: 2850(L)×1850(W)×3350mm(H)

Net weight: ≈2.5t

Functions and Applications

 1. Ceramic materials: aluminum oxide ceramics, zinc oxide ceramics, zirconium oxide ceramics, target ceramics, honeycomb ceramics, semiconductor ceramics, conductive ceramics, non-conductive ceramics, etc.

2. Crystal material: graphite, silicon crystal (solar polysilicon, single crystal silicon), sapphire, aluminum oxide crystal, infrared glass crystal, aluminum oxide crystal, silicon carbide crystal, cesium iodide crystal, etc.

3. Glass materials: chalcogenide glass, optical glass, quartz glass, infrared glass, glass tube, etc.

4. Metal materials: iron, aluminum, copper, titanium alloy, magnesium alloy and other metals and alloys, non-ferrous metals (zinc sulfide, ferrite), etc.

5. Composite materials: PVC board, carbon fiber composite material, glass fiber composite material, etc.

6. Rock material: precision cutting of natural rock, jade, meteorite, jadeite/emerald, agate, etc.;

       Precise slices of various high-value materials;

   geological slices, geological slices (sedimentary rocks, magmatic rocks, metamorphic rocks, ore) and other square slices

7. Thermoelectric materials: bismuth telluride, lead telluride, silicon germanium alloy, etc.

8. Infrared optical materials: zinc selenide, zinc sulfide, silicon, germanium and other crystals

9. Biomedical materials: Bioplasticized specimen slices (human and animal organs, combined sections of soft and hard jaw tissues, implant observation, dental crowns and bridges, teeth and other histological specimens);

    Orthopedic soft and hard tissue joint sections (femoral, hip, vertebral body and other fresh tissue and hard tissue, bone histological samples with implants, etc.);

    Cardiovascular and cerebrovascular stent slices, calculi slices and other medical tissue slices;

…

Note: Precision cutting can be performed for materials with hardness less than diamond wire.

1

Leading Wheel

8 pcs

2

Remote Control

1 pcs

3

Circulating Coolant Tank

(including water pump and hose and connector)

1 set

Including water pump and hose and connector

4

Water-Protection Cover

(Used at both sides of the equipment)

1 set

Used at both sides of the equipment

2

Cutting Oil

（optional）

3

Mute Oilless Air Compressor

（optional）

4

DX-100 Single-Crystal Direction-Finder

（optional）
